Sponge-Jet Feed Units
Portable Feed Units
Portable Sponge-Jet Feed Unit™ – designed to offer maximum range of capabilities and features to accommodate every application. From standard, value-based units to feature rich, high-performance systems to units designed specifically for use in extreme environments.

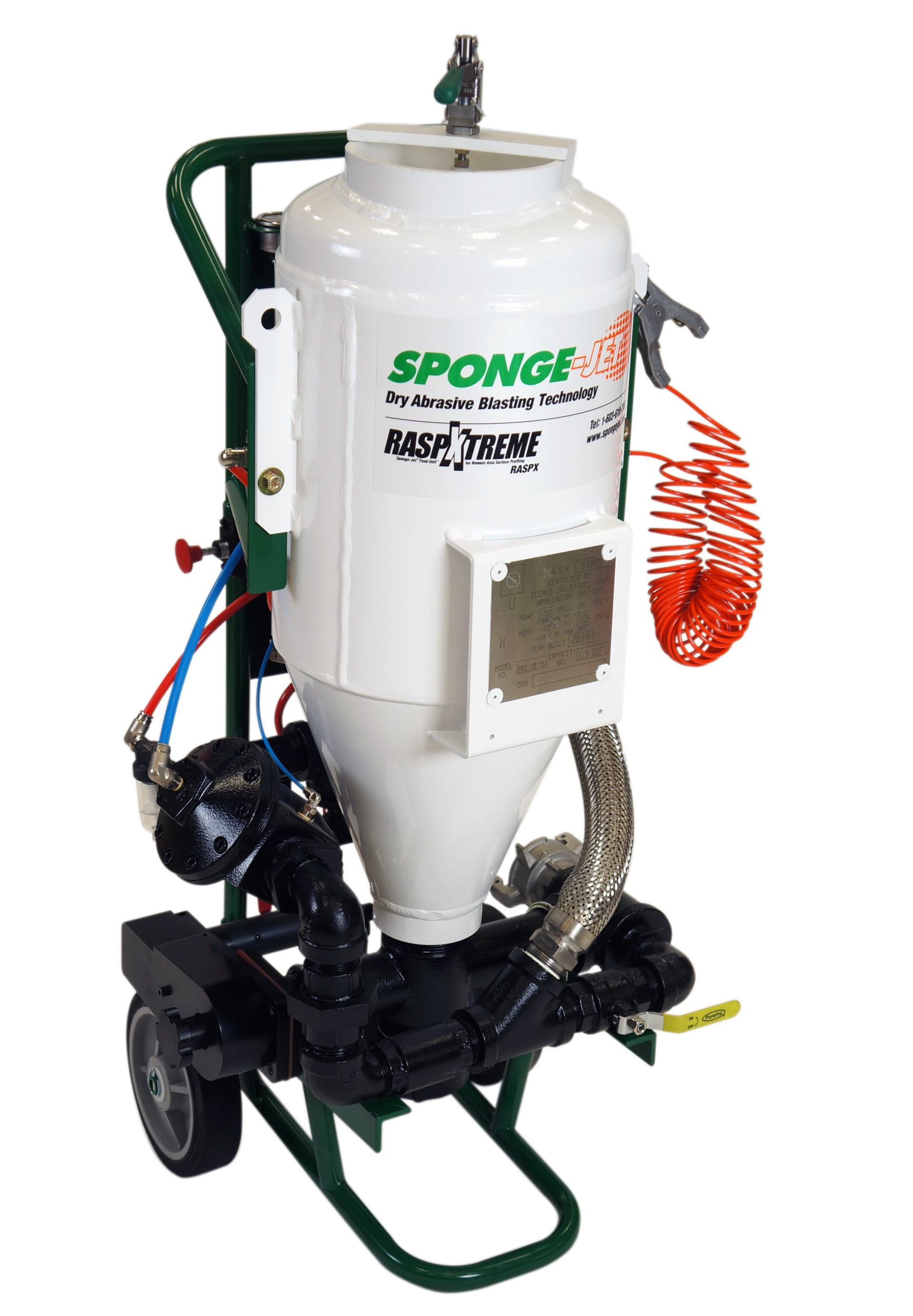

RASP Xtreme™
Description
Part #: SJE-FE-RX3
This Feed Unit is light and portable, allowing for transport in most vehicles. It can be passed through a 60cm (24inch) “man way”. During blasting, it is as productive as other Feed Units but requires refilling every seven 7 minutes. Features specific to the Extra Mobile RASP Xtreme™ are: Lightweight for ease of mobility Blast pressure adjustment
Features specific to the Extra Mobile RASP Xtreme™ are:
- Lightweight for ease of mobility
- Blast pressure adjustment
- Integrated wheel system
- Pressure relief valve
- Controls for precision monitoring and adjustment
- Interlock system with 25P Sponge-Jet Recycler™ for single-operator transport
- Options: Nozzle size and nozzle type
| Product name | RASP Xtreme™ |
|---|---|
| Part | SJE-FE-RX3 |
| Weight | 58 kg |
| Length | 560 mm |
| Width | 590 mm |
| Heigth | 1190 mm |
| Volume | 37 L |
| Pressure Certification | 10 bar |
| Blast Time | 7-12 min |
Features
- Internal agitation assembly keeps Sponge Media abrasives flowing reliably throughout the vessel
- Adjustable, pneumatic driven, auger metering system assures optimal media flow and maximum efficiency at all blast pressures
- Integrated E-Stop and remote deadman control system
- Standardized parts and maximum reliability by design
- High-quality, industry standard components for long, trouble-free operation, simplified spare part acquisition and replacement
- Multi-language labels, instruction manuals and online training tools
- Color-coded pneumatic lines for easy troubleshooting
- Extended service, permanently lubricated air motor and auger bearings minimize maintenance and wear

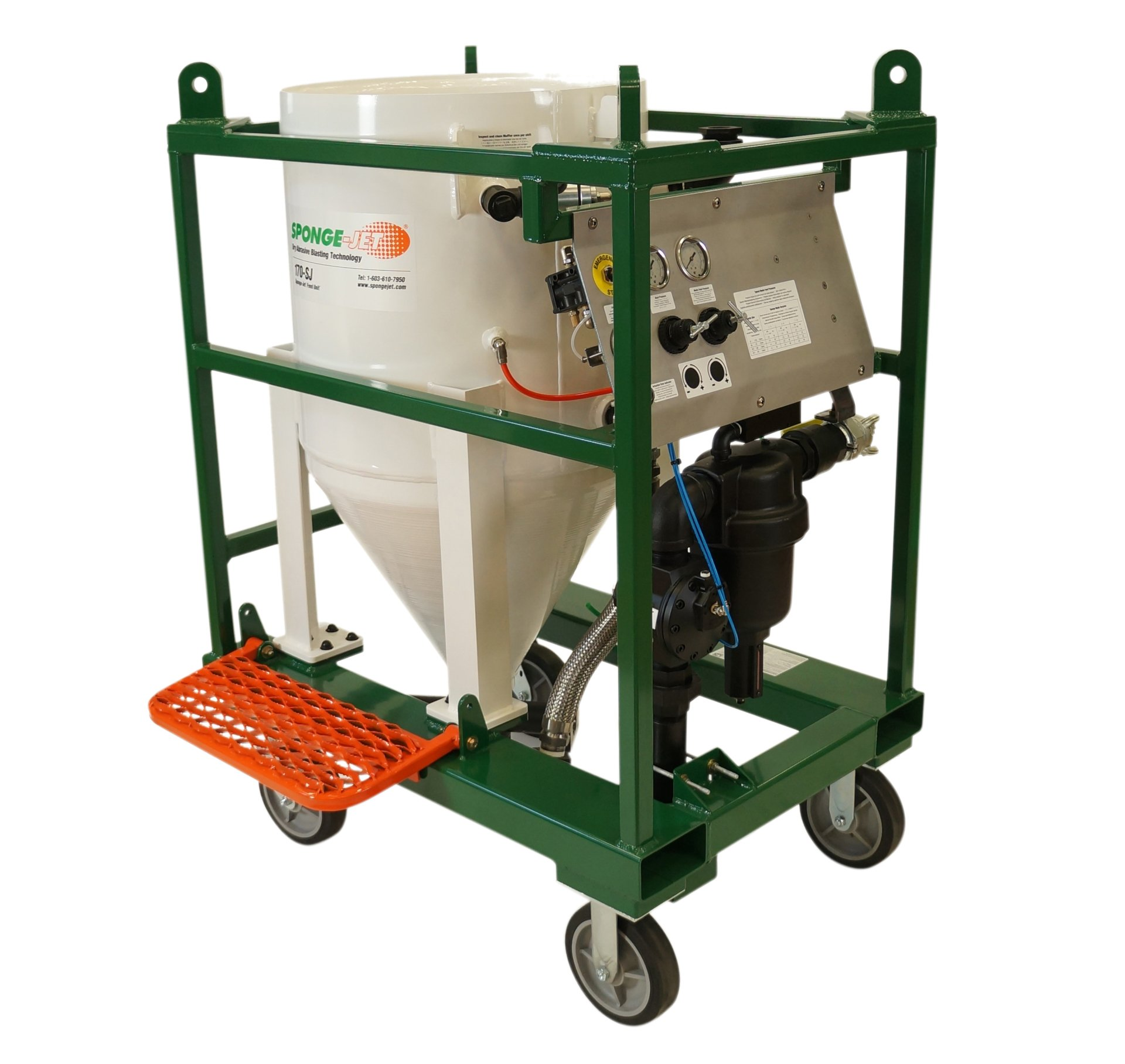

Sponge-Jet Feed Unit™
Description
Part #: SJE-FE-170-SJ
This unit Feed Unit is feature-rich and the most popular with an excellent balance between size, cost and blast-time.
Features specific to the 170-SJ are:
- Pressure relief valve
- High-capacity muffler
- Blast pressure adjustment
- Lifting eyes
- Fork pockets
- High-performance casters
- Secondary moisture separator
- Options: Nozzle size and nozzle type
| Product name | 170-SJ Feed Unit |
|---|---|
| Part | SJE-FE-170-SJ |
| Weight | 410 kg |
| Length | 1100 mm |
| Width | 750 mm |
| Heigth | 1540 mm |
| Volume | 170 L |
| Pressure Certification | 10 bar |
| Blast Time | 45-60 min |
Features
- Internal agitation assembly keeps Sponge Media abrasives flowing reliably throughout the vessel
- Adjustable, pneumatic driven, auger metering system assures optimal media flow and maximum efficiency at all blast pressures
- Integrated E-Stop and remote deadman control system
- Standardized parts and maximum reliability by design
- High-quality, industry-standard components for long, trouble-free operation, simplified spare part acquisition
- Multi-language labels, instruction manuals and online training tools
- Color-coded pneumatic lines for easy troubleshooting
- Extended service, permanently lubricated air motor and auger bearings minimize maintenance and wear

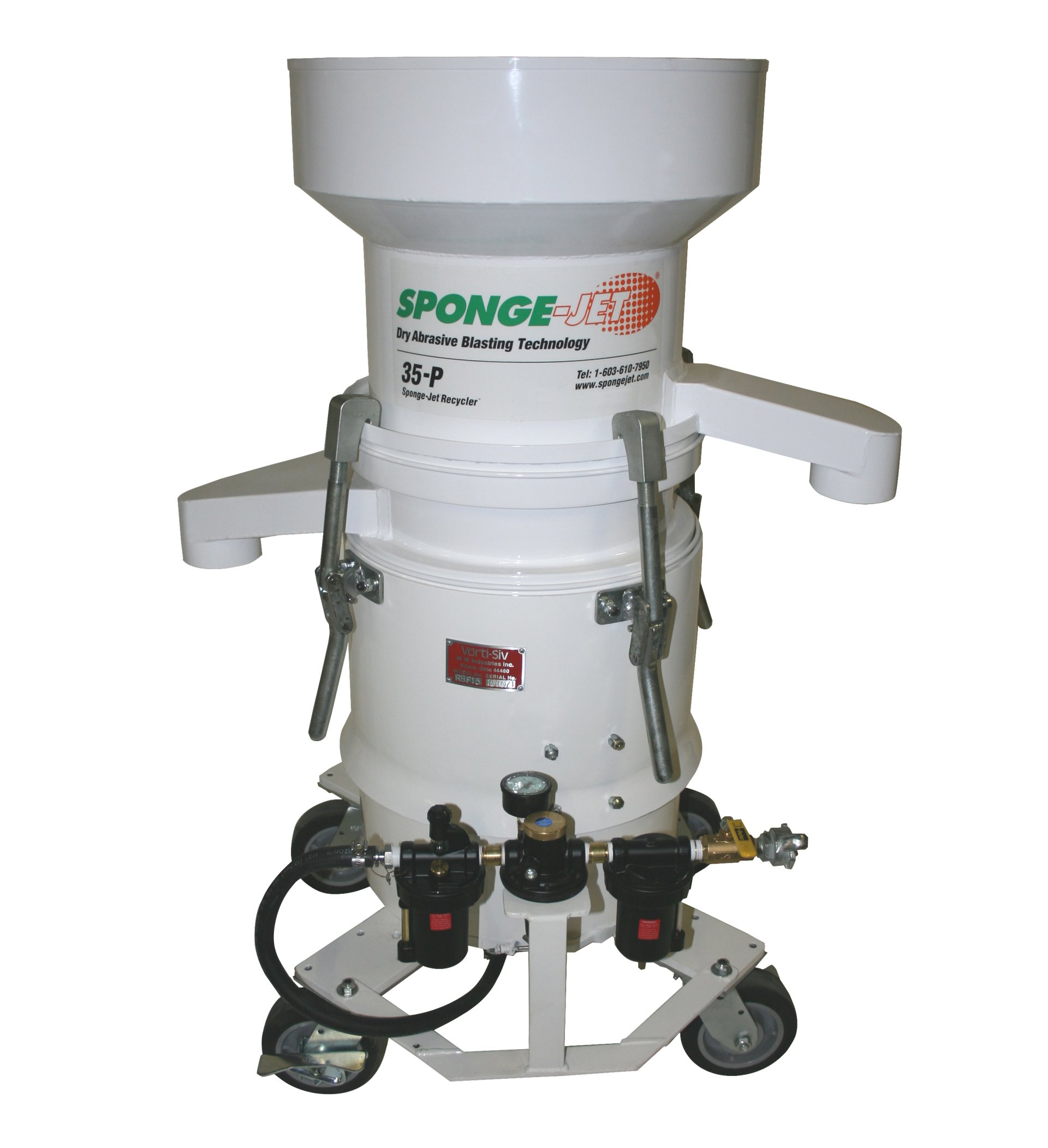

Sponge-Jet Media Recycler™
Description
Part #: SJE-RE-35P
Most popular and versatile Sponge-Jet Recycler. Pneumatically powered. Production-aligned with typical flow of Sponge Media through a single Feed Unit. Highly portable.
Features specific to the 35-P Recycler are:
- Compact, production-capable design
- Practical balance between process speed, size, power requirements and separation efficiency
- Mid-sized, easily relocated on job sites
- Clamp system for ease of transport, quick screen inspection and cleaning
- Oversized hopper for Sponge Media™ ease of flow through the system.
- Pneumatic connections easily connect into existing air supply on job sites
- Lifting Frame option available for lifting by overhead crane
- Options: Closed top for vacuum systems
| Product name | Sponge-Jet Recycler™ |
|---|---|
| Part | SJE-RE-35P |
| Weight | 136 kg |
| Length | 840 mm |
| Width | 840 mm |
| Heigth | 1220 mm |
| Process Speed | 7 kg pro Minute |
Features
- Efficiently reduces abrasive consumption and dust emissions, separating good, reusable Sponge Media abrasives from dust, contaminants and/or potentially harmful waste, which might normally become airborne dust
- Decreases abrasive costs, freight, handling, clean-up and disposal costs up to 95% by reusing Sponge Media 6 to 15 times
- Separates used media into 3 streams:oversized waste, good reusable media and fine waste.
- Integrated locking wheel system for ease of transport
- Standardized parts and maximum reliability by design
- High-quality, industry-standard components for long, trouble-free operation, simplified spare part acquisition and replacement
- Multi-language labels, Instruction manuals and online training tools
- Extended service, motor and bearings minimize maintenance and downtime
- Screen size maybe changed for optimized flow and dust requirements
- Optional magnetic separator

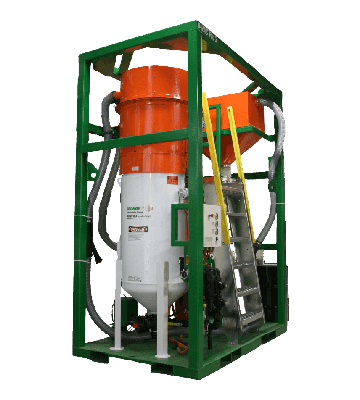

B-VAC™ Pro 4
Description
Part #: SJE-BV-PRO
Integrates all components in a single frame for transport by fork truck, flatbed or crane. The B-VAC is ideal for applications where space is a premium and redeployment time is costly. This is the most popular of Sponge-Jet integrated systems.
Features specific to the B-VAC Pro 4 are:
- Integrated, vacuum-sealed, closed-top Sponge-Jet Recycler™
- High-volume, low-noise vacuum ejector
- High-strength steel frame and integrated ladder
- Cyclone storage silos
- High-capacity muffler
- Fork pockets, Lifting eyes
- Secondary moisture separator
- High-volume pressure relief valve
- Centralized controls for precision monitoring and adjustment
- Options: Pneumatic or electric vacuum and recycler
- Specifications
| Product name | B-VAC™ Pro 4 |
|---|---|
| Part | SJE-BV-PRO |
| Weight | 2950 kg |
| Length | 246 cm |
| Width | 155 cm |
| Height | 331 cm |
| Volume | 453 Liter |
| Pressure Certification | 10 bar |
| Blast Time | 130 minutes |
| Vacuum Ejector | 3800 mm WC (11 in Hg), 630 nm3/hr (370 cfm), 76,5 dB(a) |
| Vacuum Air Supply | 4.1 nm3 / min (145 cfm), 7 bar (100 psi) |
| Vacuum Transport Capacity | 100 m (300 ft) hose, 8 kg (18 lb / min) |
Features
- Internal agitation assembly keeps Sponge Media abrasives flowing reliably throughout the vessel
- Adjustable, pneumatic driven, auger metering system assures optimal media flow and maximum efficiency at all blast pressures
- Integrated E-Stop and remote deadman control system
- Standardized parts and maximum reliability by design
- High-quality, industry standard components for long, trouble-free operation, simplified spare part acquisition and replacement
- Multi-language Labels, Instruction manuals and online training tools
- Color-coded pneumatic lines for easy troubleshooting
- Extended Service, permanently lubricated air motor and auger bearings minimize maintenance and wear

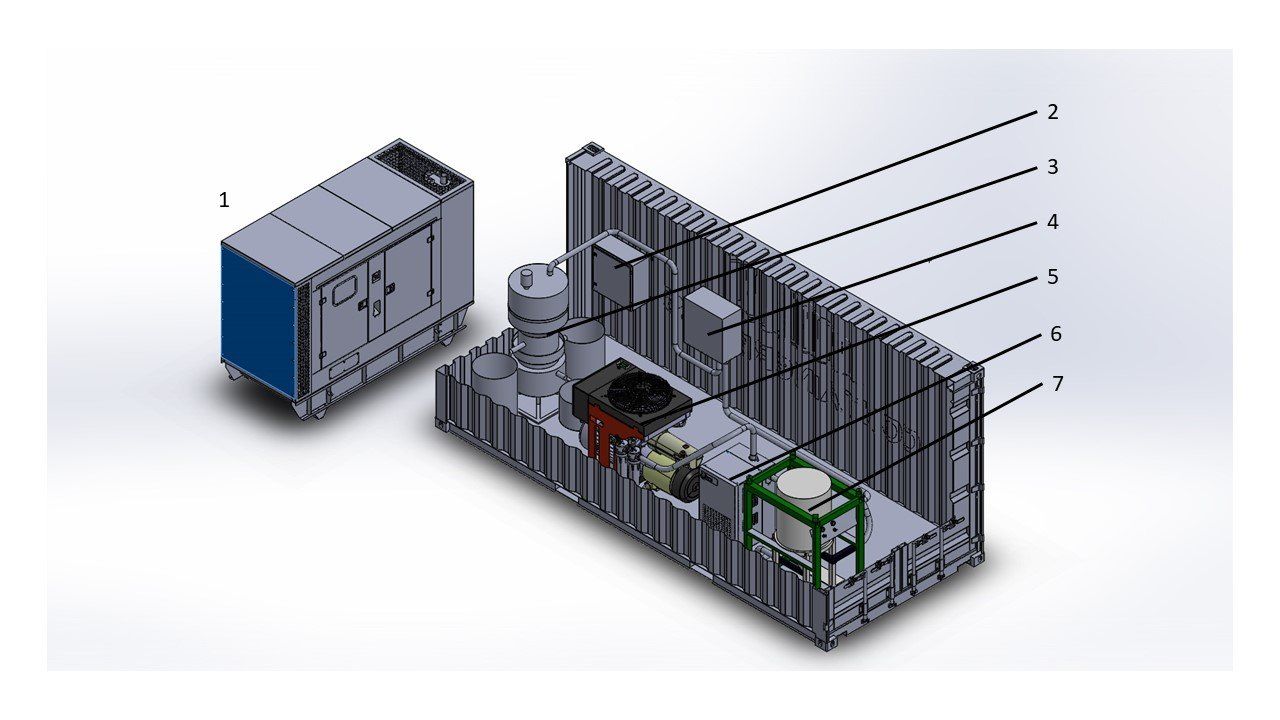

Your individual solution
Description
Together with Meyer Automatisierung GmbH we develop your individual Sponge-Jet® solution.
It is possible to plan stationary or mobile units.
Fully automatic, partially automated, with and without a compressor. According to your needs. The following elements are generally required and can be combined with one another.
- Sponge-Jet® (7)
- DeviceRecyclerVaccuum (3)
- Compressor (5)
- Generator (1)
Technical data
depending on requirements
